HP OneLam 400 A3
HP OneLam 400 A3

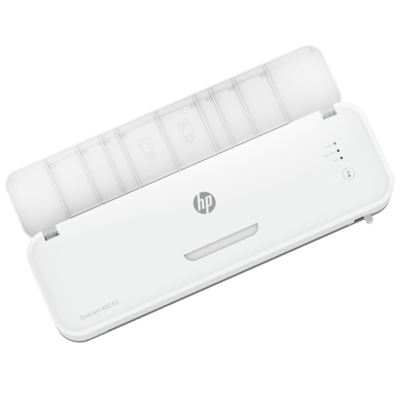

The HP OneLam 400 A3 has a fold-out lid, which not only serves as a practical insertion aid, but also makes the device a particularly space-saving companion. The practical backloader is suitable for hot and cold lamination and can be used for laminating films with a thickness of 75/80 to 125 microns. Whether you want to protect recipes, photos or children's drawings from wear and tear, the laminator seals your documents regardless of format, from business cards up to DIN A3.
Available in stores now.
Highlights
Warm-up time
Heats up in 2-4 minutes and ready to use for 80 microns.
Film thickness
Applicable from 75/80 to 125 microns.
Format
Suitable for everything from business cards to DIN A3 documents.
Accessories
Cutting ruler, corner scraper and foil set included.
Key facts
The modern HP OneLam 400 A3 has an intuitive function button that sets the required temperature based on the selected film thickness and this reliable assistant heats up in 2-4 minutes.

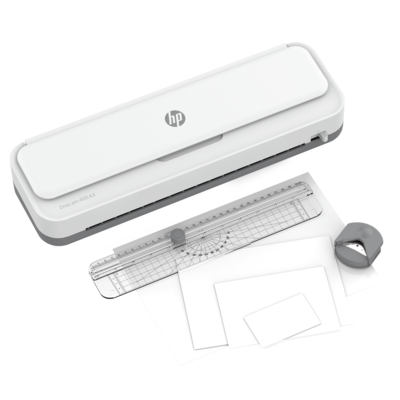

A cutting ruler, corner scraper and a 15-piece starter set consisting of three A4, four A5, four A6 and four business card sheets is supplied so that you can begin your laminating project right away. The cutting ruler and the corner scraper can be stored in a handy compartment underneath the device so that you always have the accessories at hand.
With a speed of 400 millimetres per minute, the HP OneLam 400 A3 therefore laminates an A3 document in about 60 seconds. If you have inserted the film into the laminator at an angle, this can lead to a film jam. Thanks to the roller release lever, the film can be carefully released and pulled out on the input side and the foil jam rectified.
If you forget to switch off the device via the main switch, the heating process is stopped after 30 minutes and the laminator switches to standby mode.
Technical data
Download
HP OneLam 400 A3
The device
- Range of application: private households / hobby requirements, office workstations
- Laminating formats: from business cards to DIN A3 format
- Warm-up time: 2 - 4 minutes for 80 microns
- Film thickness: 75/80 up to 125 microns or 0.5 mm thickness
- Application: Hot and cold lamination
- Laminating speed: 400 mm per minute
- Backloader: fold-out lid as insertion aid on the rear side
- Temperature: 120 - 150 degrees celsius
- Heating system: 2 rollers are heated from the inside
- Input width: 330 mm
- Colour: white
The accessories
- Cutting ruler
- Corner scraper
- 15-piece starter set (3 x DIN A4, 4 x DIN A5, 4 x DIN A6, 4 x business cards)
The functions
- Function Button: On/off, 75/80 microns, 125 microns, cold
- Temperature controlled: each film thickness has its own temperature
- Automatic standby mode: after 30 minutes
- ABS function: roller release lever
The operating conditions
- Voltage: 220 - 240 V
- Frequency: 50 / 60 Hz
- Power: 400 W / 1.74 A
- Motor type: AC
The logistics
- Item number: 3161
- EAN: 4030152031610
- Device dimensions: 460 mm x 140 mm x 86 mm (width x depth x height)
- Device weight: 1.77 kg
Data sheet HP OneLam 400 A3.pdf
Manual OneLam 400 A3_400 A4.pdf
Quick guide OneLam 400 A3_400 A4.pdf
Declaration of Conformity OneLam 400 A3_400 A4_Combo A3.pdf
Declaration of Conformity OneLam 400 A3_400 A4_Combo A3 turkish.pdf
UK Declaration of Conformity HP OneLam.pdf
